規格訊息：

1.高阻隔性能，可保護產品分子

2.堅固、靈活和耐破強度高

3.方便入口和出口快速連接

4.容易握持和懸掛



1.無菌培養基、緩衝液及藥物物質在低溫下長期無菌儲存

2.將無菌培養基轉移至生物反應器

3.製程區域之間製程中間體的轉移

4.將藥物成分無菌轉移至製劑設施



Materials of Construction
Bag Film	AseptiFlex-D film type FBG-1
Connection Ports	Polycarbonate
Clamps	Polyester
Tubing	Platinum cured silicone
Operating Temperature	-80°C to 45°C
Freeze - Thaw Conditions	Minimum Temperature : -80°C Maximum No. of Freeze - Thaw Cycles : 05
Burst Pressure with Water	>15 psi
Storage Temperature	-20°C to 45°C
Sterilization	Gamma Sterilizable upto 50 kGy
Assurance
Bacterial Endotoxin	Aqueous extracts exhibit < 0.25 EU/ml as established by Limulus Amebocyte Lysate (LAL) Test as per USP<85>
Fiber Release	Passes microscopic test for fibers
Particle Release	Complies with USP <788> test for particulate matter in injections
Extractables with WFI	Does not affect the quality of Water for Injection (passes tests as per USP<661>)
Sterility	The gamma sterilization process has been validated as per ISO 11137 to ensure a sterility assurance level (SAL) of 10-6
Biosafety	Passes the Biological Reactivity Tests, In Vivo for Class VI plastics as described in USP <88>
	Passes the Biological Reactivity Tests, In Vitro for Cytotoxicity as described in USP <87>



相關規格尺寸

	Bag Size	A	B
	3 mL	75mm	55mm
	10 mL	90mm	60mm
	50 mL	157mm	87mm
	100 mL	179mm	92mm
	250 mL	189mm	134mm
	500 mL	226mm	155mm
	1 litre	275mm	200mm
	2 litre	350 mm	200 mm
	3 litre	378 mm	247 mm
	5 litre	410 mm	319 mm
	10 litre	620 mm	322 mm
	20 litre	520 mm	580 mm
	50 litre	860 mm	582 mm

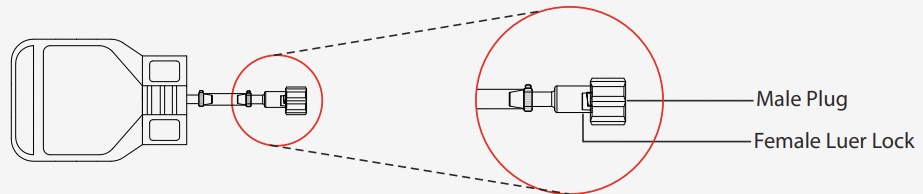

For 3ml storage bags

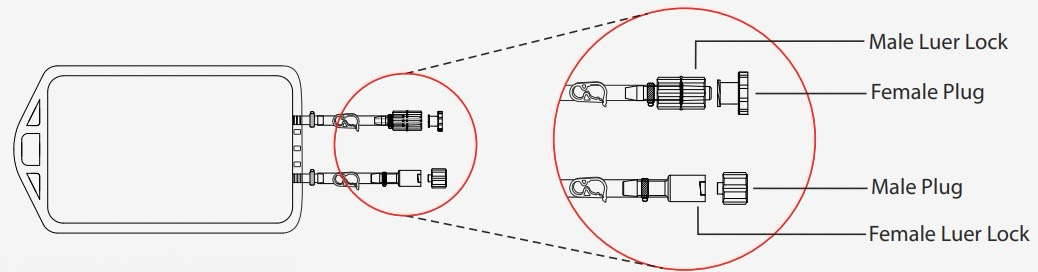

For 10ml to 250ml storage bags

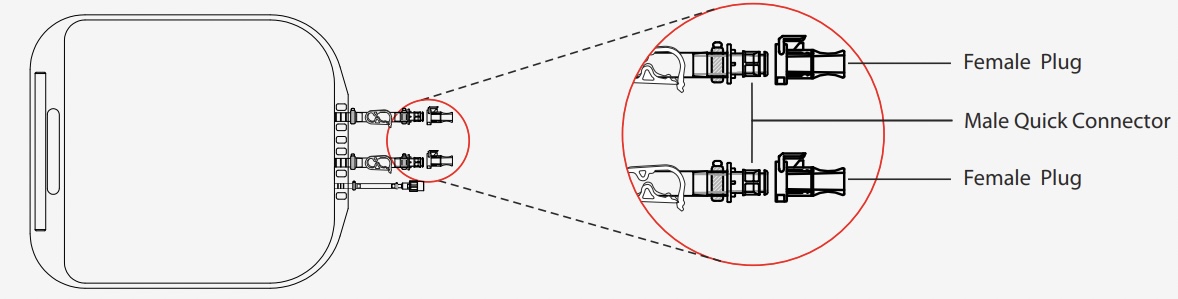

For 500ml to 50L Storage Bags
